Roto Mould oven Machines |
|
|
-
Re-processing unit
-
Pulvarizer unit
-
Roto-mould oven
-
Stainless steel Moulds
-
Scrap grinder.
-
Mixer machine
|
|
|
Standard Equipment Features :
1. Re-Processing unit /Extruder unit |
|
|
|
|
|
|
|
For
-
Colouring
-
Compounding
-
Re-Processing
-
Palletizing
|
|
Extruders
-
Suitable for LLDPE,
HDPE and PVC.
-
Screw rod & Barrel
made of En.353 Steel duly nitrided & honing finished.
-
Mounted on sturdy
fabricated steel frame.
-
Heavy Duty thrust
bearing, Housing and bearings immersed in oil lubrication.
-
A.C. Motor- pulley
drive with reduction gearbox.
-
Barrel heating by
ceramic band heaters.
-
Cooling System for
accurate digital temperature control panel board.
-
Heating Control by
digital temperature controller.
Head & Die:
Compact in Design and having swiveling arrangement.
Cooling Tank:
With Adjustable water level & Guide Rollers.
Palletizing Unit:
With 2 hp electric motor.

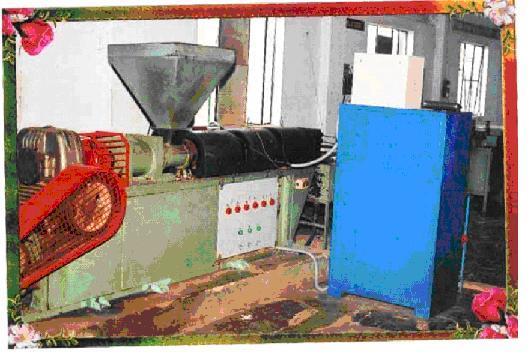

NMEI
Re-processing/Extruder
machines
unit most important machine to reprocessing the virgin materials
with Master batch. The Pelletizer Machine also coupled. The screw
and barrels are made in En-353 materials and fitted with Heaters.
Main motor and gearbox are selected according to the output. Our
machines are very Rigidity and production wise economical and low
power consumption. We are manufacturing 40kgs/hr output to 300kgs/hr
output
2.

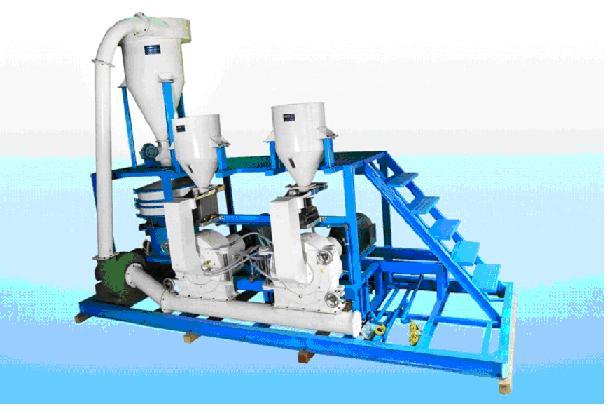

Pulvarizer machine
Outstanding Features:
Latest
Technology:
NMEI
made pulverizers are manufactured as per latest technology
with stringent quality in each and every stage of manufacturing to
give you world class quality product in wide range for different
applications and rigidly confirming to international standards.
Materials-PVC, HDPE, LLDPE, PC & Delrin
Long
Lasting Range:
NMEI Pulveriser is of high quality sturdy machines, which
range from 30-500-kgs/ hr. with MAIN BODY DOUBLE JACKETED for WATER
COOLDED. This will be fabricated out of heavy mild steel of suitable
thickness.
Bearing Housing:
Bearing housing is designed for 3500 RPM with outer double jacketed
for water/oil circulation for cool running.
circulated oil lubrication for bearings, heavy duty ball- bearings
for higher load bearing; main shaft is dynamically balanced and made
from EN-19 material of tasted quality.
The complete design is such that it provides noise less operation
and trouble free working.
Disk and Mill Body:
The disk is made from graded material EN 41-B or En-19 tested
quality and dynamically balanced for smooth running& long running.
One stationery-grinding disk with water-jacketed is provided on
doorframe with provision for easy adjustability of disk gap by set
of 6 bolts.
Inspection windows (2 Nos) are provided on both side of mill body
for visually checking disk gap and assist the gap setting.
A large door allows easy access to the Mill body.
Several options are available to simplify the cleaning process.
Change of disk is very easy and user friendly.
Feeding:
Feeding hopper is available in Mild Steel or Stainless Steel
(optional) with low-level indicator that is connected with control
panel.
Vibrator coil is provided for auto feeding the Mill which is
controlled by regulator knob and is connected with control panel for
auto tripping in case of overload feeding.
Cyclone:
Our cyclonic system is well designed for powder separation and easy
of cleaning with dust collector cloth for trapping fines.
½ hp geared motor Butterfly valve is coupled for fine air
separation.
Vibro Screen:
Vibro Screen (Gyratory type) is part of our system with suitable
size of machine according to model for
pulveriser.
The Vibro Screen are with specially designed vibro motor, single
deck for Mild steel of Stainless Steel (Optional), 20 # S.S. screen
with anti blinding ring tray arrangement and basic structure from
heavy mild steel for long lasting. Vibro screen recycles the coarse
material for optimum output of the Pulveriser.
Other Inclusions:
Complete support structure from heavy steel, Main motor of standard
make, high speed blower with motor, Rotary Air Lock value, Pneumatic
Hoper Loader (on request). Digital control panel with temperature
indicator, overload tripping, Hooper if material below low-level
indicator.
3.Roto
mould oven/Rack N roll oven |
Rock- n- roll machine
Machines are one of the most elementary
Roto-moulding machines.
NMEI offers these machines to manufacture articles up to
10,000 liters capacity and large sizes of
products. Rock n roll Oven machine
tilts on one of its axis both ways along
with rotation of the mould on the other
axis thus providing the vital double axis
motion. The machine comes along with
digital control panel, digital drive for
accurate control timer and necessary
controls for effective and economic
products .We can make to operate in
Diesel, Furnace oil and LPG. Easy to
operate and low maintenance. Very low
Operation cost. Less fuel consumption.
High production capacity.
|
|
4. Moulds |
Moulds the heart of rotomoulding process. We
manufacture moulds to suit the requirement
of customer.
The moulds
are manufactured from Special grade
Stainless Steel/Mild steel appreciable for
the Rotational Moulding Process giving
best possible finish and better mould
cycle life.
The moulds are designed precisely
optimizing the material flow and
thickness.
The dimensions and sizes of the moulds vary as per the
requirements of the customers.
We have specific formats provided on
confirmation enabling the selection of
moulds with all respects.
•
Horizontal Circular Tank,
•Vertical Storage Tank.
•Chemical storage tanks
|
|
5.

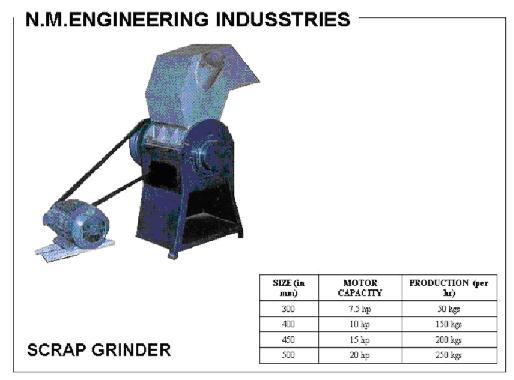

Scrap Grinder |
NMEI
make
Scrap Grinder is used for recycling of
rejected moulded products. The rejected
products are cut into pieces then grinded
to use. Materials to be grinding all
polymer rejected products and polymer
waste.
The main housing is fabricated of heavy
M.S. plates. The top cover has hinged type
open able arrangement for cleaning and is
adjusted by bolts. The screen is fitted as
lower part of the housing to be taken out
easily for cleaning.
Dynamically balanced
rotors made from carbon steel to ensure
faster grinding and good output.
Hopper is fabricated
of mild steel sheet. Non-returned flaps
are fitted such a way that ground
particles do not come out from hopper
side.
NMEI Scrap grinder
Motor
capacity |
No. Blades |
Fixed blades |
Blade size
Length. in mm |
Capacity/hr
In kgs |
5 Hp |
4 |
1 |
300mm |
50 |
7.5 Hp |
4 |
1 |
400mm |
75 |
10 Hp |
4 |
1 |
450mm |
100 |
20 Hp |
5 |
2 |
500mm |
200 |
|
|
|
6.
Mixer Machines |
NMEI -have
developed a
High Speed Mixer Machines, to mix pigment paste, pigment powder and master batch
with PVC, HDPE, LLDPE granules and powder
for even distribution and proper mixing.
It is also suitable for mixing PVC
compounding. Also free heating is
Additional advantage. .
High speed mixer
|
S.no |
Mixing drum size
In MM |
Power
|
Production /cycle
in kgs |
Machine space
In mm |
1. |
500 mm |
7.5 HP |
40 kgs |
1500x 1500x 1200 |
2. |
600 mm |
15 HP |
50 kgs |
1500 x 1800 x 1300 |
|
|
|
|
|
|
|
|
|
